Atlas 500 Straight Stairlift | Self-Install

Quick Facts
Weight Capacity350 lbs
Stair TypeStraight staircases only
Unit Footprint, Parked11 inches
PowerStandard 120V outlet, battery powered

The Atlas 500, also sold here as the AmeriGlide Rave 2, is a self-install straight stairlift built for stairs with no turns or landings. It ships to your door fully measured for your staircase, with everything you need to install it yourself in about a day. A Harmar product backed by the same engineering as our fully installed lifts, the Atlas 500 gives you a straight stairlift at a lower cost, without cutting corners on quality.

Starting at$2,195
View Specs
Assembled in the USA
Battery powered, works during power outages
11 inch parked footprint, stairs stay usable for others
AmeriGlide Rave 2 self-install stairlift, also sold as Atlas 500

AmeriGlide Rave 2

by Western Stairlifts

Product Overview

What Is the Atlas 500?

The Atlas 500, also sold on this site as the AmeriGlide Rave 2, is a maintenance-free straight stairlift manufactured by Harmar, in partnership with Atlas. It is the same lift offered under two names, with our support and professional installation available if you want it. It carries you up and down your staircase while seated in a secure, comfortable chair. The lift is designed for staircases that run in a straight line from top to bottom with no turns or landings.

The track mounts directly to your stairs, not your wall, using a single bracket at every contact point. This makes installation straightforward and leaves no permanent marks on your walls.

At the top of the staircase, the seat swivels away from the steps so you can exit safely and easily. The seat, armrests, and footrest all fold up when the lift is parked, so the staircase stays fully usable for everyone else in the home.

The unit runs on a battery that charges automatically when parked at either end of the track. If the power goes out, the lift keeps working.

AmeriGlide Rave 2 (Atlas 500) stairlift installed on a straight staircase

Is This Right for You?

Is the Atlas 500 Right for Your Staircase?

The Atlas 500 is a straight stairlift intended for a straight staircase without turns or intermediate landings. For a clear overview of straight, curved, and other stairlift options, read our guide to stairlift types.

Homeowners with a straight staircase

Anyone experiencing difficulty or risk when using stairs

Households where others still need clear access to the stairs

Families supporting a parent or loved one who wants to stay independent at home

Anyone who wants a USA-assembled product with a proven track record

Not sure if your staircase qualifies? Call 801-386-2408 — we can help you figure out the right fit.

Technical Details

Specifications

Weight Capacity350 lbs
Stair TypeStraight staircases only
Drive SystemWorm Gear / Worm-Rack
Track MaterialAluminum
Standard Track Length15.5 feet (180 inches)
Maximum Track LengthUp to 70 feet with additional sections
Unit Footprint, In Use22.5 inches
Unit Footprint, Parked11 inches
Seat Width19.5 inches
PowerStandard 120V outlet, battery powered
Call StationsWireless top and bottom, included as standard
Swivel SeatYes, swivels at top landing for safe exit
Flip-Up Seat and ArmrestsYes
Footrest Safety SensorYes
Self InstallableYes
Assembled InUSA
Available ColorsAtlas Grey

Specifications may vary based on configuration. Confirm details before ordering.

Simple Process

How It Works

01

Configure and Order

Select your track length, orientation, and any add-ons, then complete checkout. We'll start preparing your order right away.

02

Assessment Call

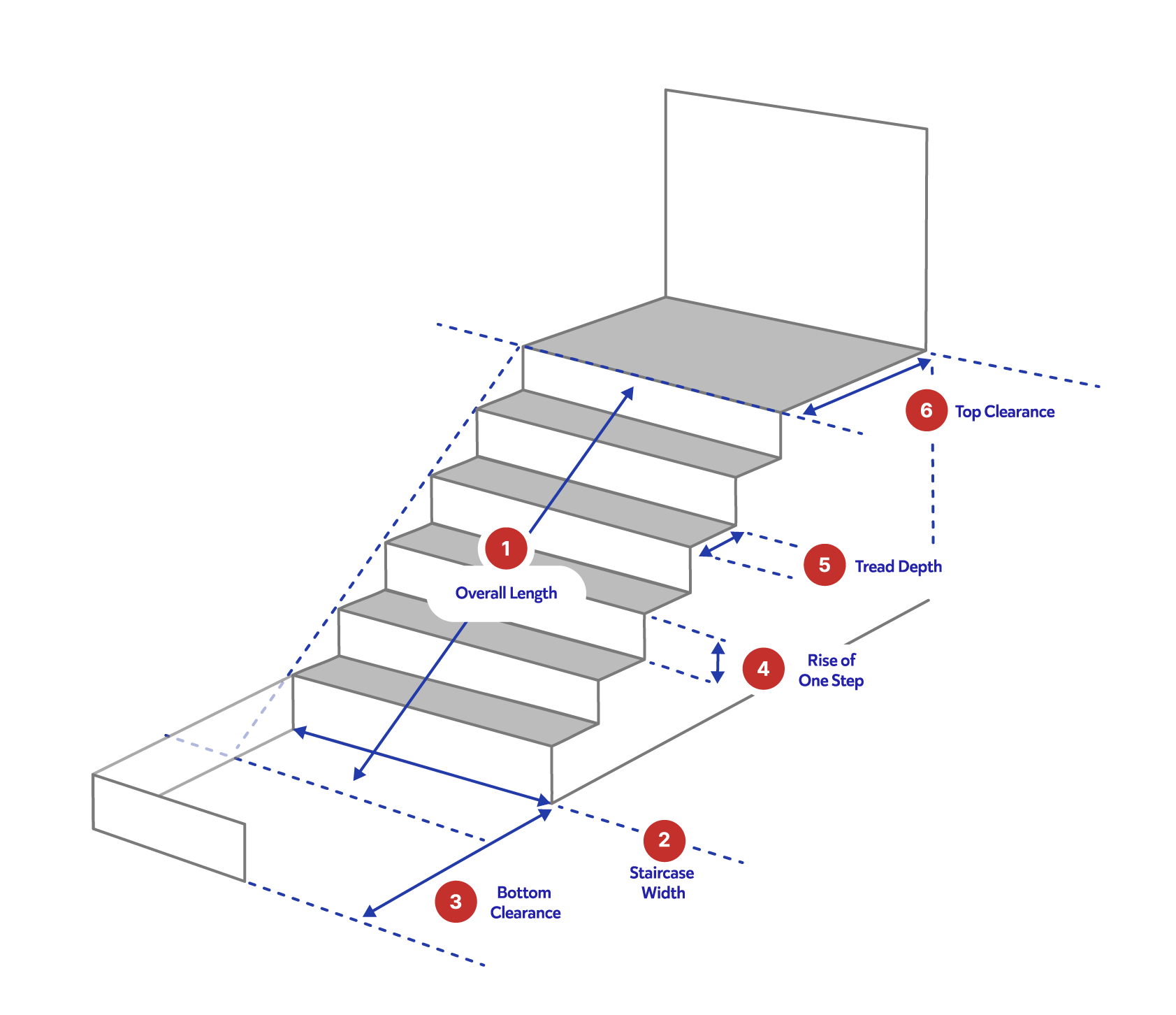

Our team calls to review every measurement — track length, staircase configuration, power access, and placement. This ensures your AmeriGlide Rave 2 is built to fit your stairs exactly.

03

Install Yourself

The track mounts directly to your stairs using single brackets at each contact point. Most homeowners complete installation in a day with basic tools and a second person.

04

Ride

Charge the battery at either end of the track, run through the safety checklist, and the lift is ready to use.

Product Photos

Gallery

AmeriGlide Rave 2 (Atlas 500) — straight stairlift installed on staircase

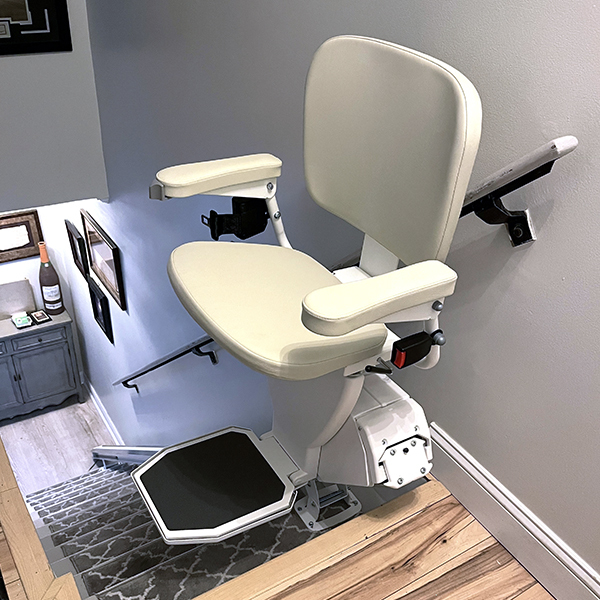

AmeriGlide Rave 2 (Atlas 500) installation in a real home setting

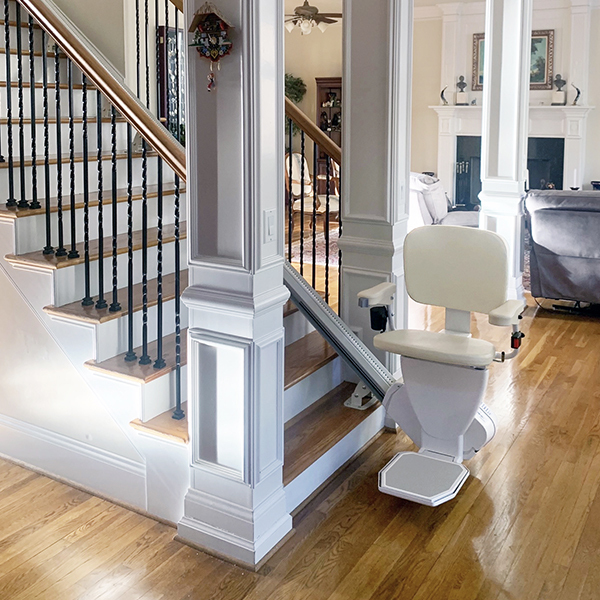

AmeriGlide Rave 2 (Atlas 500) installed in a real home setting

Common Questions

Frequently Asked Questions

Is the AmeriGlide Rave 2 the same as the Atlas 500?
Yes. The AmeriGlide Rave 2 and Atlas 500 are the same self-install stairlift, sold under two different names. Both offer the same 350 lb weight capacity, battery backup, and swivel seat with flip-up armrests. On this page, AmeriGlide Rave 2 is the primary product name and Atlas 500 is the alternate name used for the same lift.
Does this work on any staircase?
The Atlas 500 is a straight stairlift designed for a straight staircase without turns or intermediate landings. If your stairs have a turn or landing or are curved stairs, you may need a curved stairlift or two units placed on each straight section of stairs. Call us and we can help you figure out the right fit before you order.
Can I install this myself?
Yes. The track mounts directly to your stairs using single brackets and standard tools. Most installations are completed in one day with two people. If you prefer not to install it yourself, a local contractor can typically handle the setup.
What if the power goes out?
The AmeriGlide Rave 2 runs on battery power. It charges automatically when parked at either end of the track and keeps working during power outages.
Will this damage my stairs or walls?
No. The track mounts to the stair treads themselves, not the wall. It can be removed without significant modification to the staircase.
What if my staircase is shorter than 15 feet?
The track can be custom cut to your staircase length, either at the factory or on-site during installation.
Can the track fold out of the way at the bottom?
Yes, with the optional folding rail add-on. This keeps the foot of the stairs clear when the lift is not in use.
How long does delivery take?
Orders typically arrive within 7–10 business days from the date your order is confirmed.
Does Western Stairlifts install this product?
Yes. If you're located in Utah, Idaho, or Arizona, our team can handle the full installation for you. The AmeriGlide Rave 2 is also designed for self-installation, so if you're outside our service area or prefer to install it yourself, it ships with everything you need to get it done.

Self-Install or Professional Installation?

The Atlas 500, also sold as the AmeriGlide Rave 2, is designed for self-installation. If you prefer to have a professional handle it, our team offers straight stairlift installation across Utah, Idaho, and Arizona.

See Straight Stairlift Installation Options801-386-2408

AmeriGlide Rave 2 (Atlas 500) — Starting From

Configure Your AmeriGlide Rave 2

Choose your track length and add-ons. Every lift starts at $2,195.

Starting Price

$2,195

Max Load

350 lbs

Includes

  • 15 ft standard aluminum track
  • Battery backup – works during outages
  • Wireless top & bottom call stations
  • Swivel seat with flip-up armrests
  • Footrest safety sensor

Or schedule a free evaluation first

Assembled in the USA
Battery powered, works during outages
Straight staircases only
